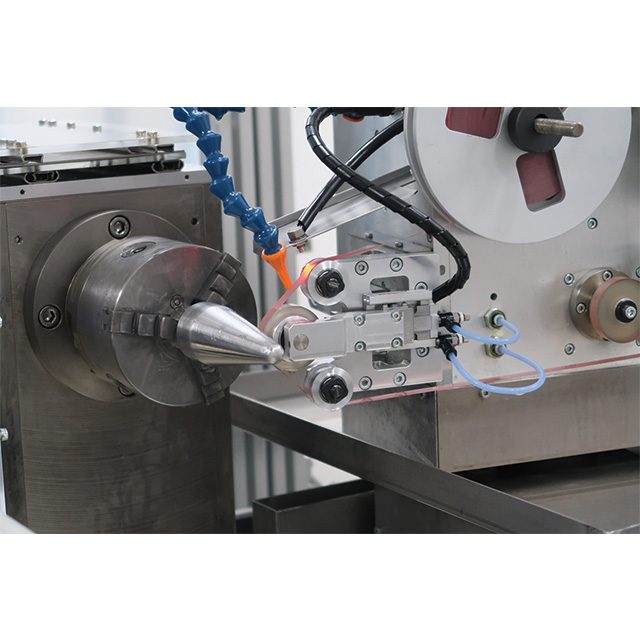

By applying the conventional film polishing technique, it is possible to approach the inner and outer diameter parts. We have developed a polishing device that can handle a wide variety of shapes by changing the tip attachment. In addition, the polishing head is equipped with a rotating mechanism, making it possible to polish corners, R surfaces, and tapered areas. approach became possible. The rotating head polishing device KIDF-2065-100 has the following features.

• The polishing head can be pressed against the polishing surface of the workpiece at the optimal angle.

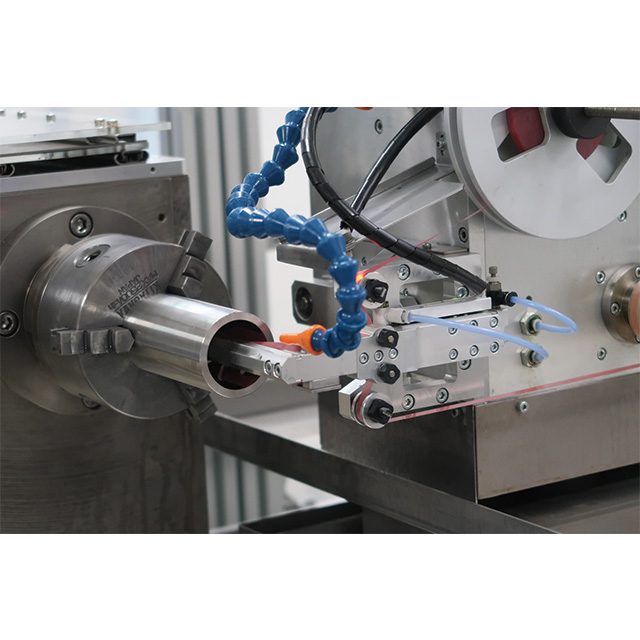

• By changing the tip attachment, inner diameter polishing is possible from φ20 to φ65 mm.
• The polishing head can be rotated up to 90°, allowing polishing right to the edge

The main polishing parts and applications are as follows.
– Shaft interior and exterior

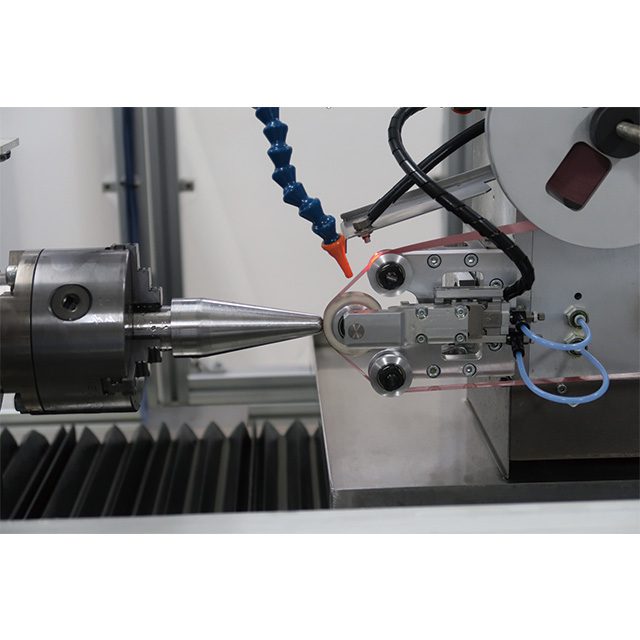

• Tapered section (shaft)
•  Corner R surface of shaft parts

– Side of shaft parts

KOVAX Multi-function tape polishing device KIDF-2065-100
